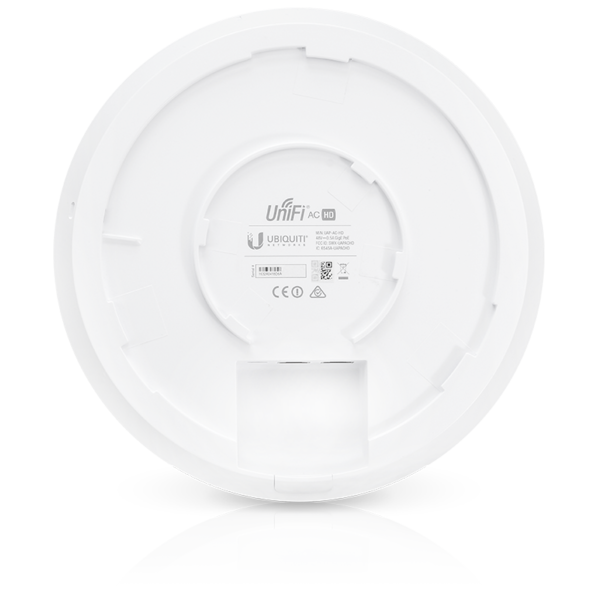

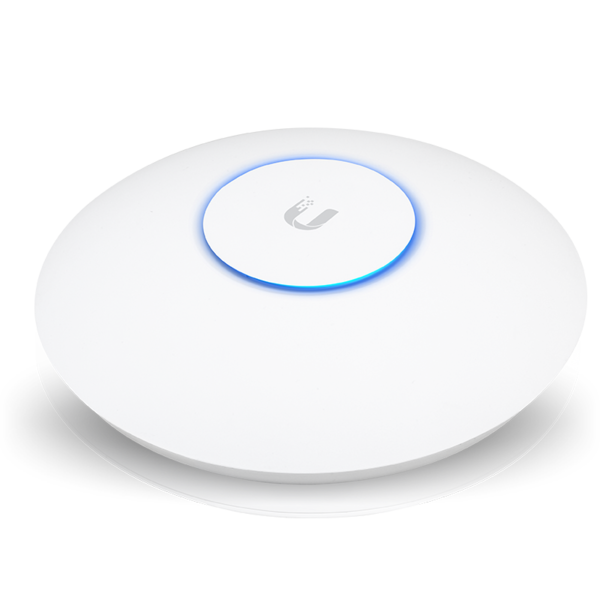

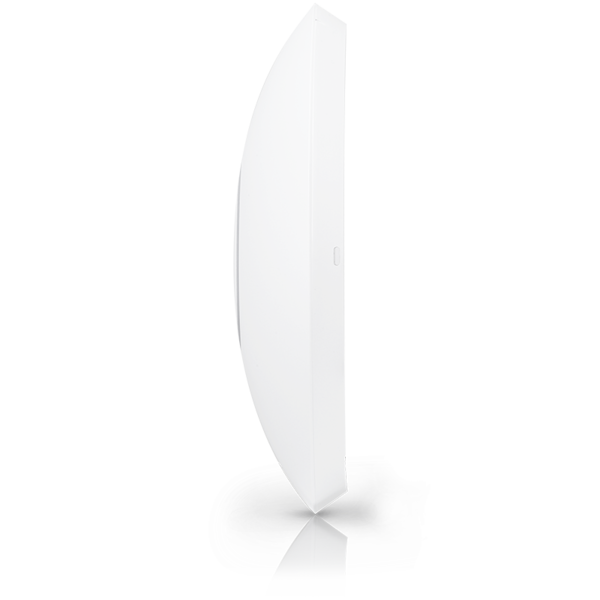

Ubiquiti Access Point AC HD

$349.00

Dual-band, 802.11ac Wave 2 access point designed to support high-density networks and critical system applications.

The Access Point AC HD (UAP AC HD) is a high-performance, indoor/outdoor, 802.11 ac WiFi access point that utilizes Wave 2 technology to reach an impressive 2+ Gbps aggregate throughput rate with its 5 GHz (4×4 MU-MIMO) and 2.4 GHz (2×2 MIMO) bands. The UAP AC HD also has a focused antenna pattern to enhance your network’s capacity and reduce interference from neighboring access points. This access point is powered with 802.3at PoE+ and is equipped with (2) GbE RJ45 ports and (1) USB port to support multiple connection types. The UAP AC HD can be set up in minutes and fully managed with the UniFi Network web application or mobile app.

Features:

      • 802.11ac Wave 2 WiFi technology
      • 5 GHz (4×4 MU-MIMO) band with a 1.7 Gbps throughput rate
      • 2.4 GHz (2×2 MIMO) band with a 450 Mbps throughput rate
      • Powered with 802.3at PoE+*
      • (2) GbE RJ45 ports
      • (1) USB port



  Managed with the UniFi Network application.

Available on backorder

SKU: UAP-AC-HD-US Category:

Description

Mechanical
Dimensions 220 x 220 x 48.1 mm
Weight
with Mounting Kits
700 g (24.7 oz)
830 g (29.3 oz)
Networking Interface (2) 10/100/1000 Ethernet Ports
Ports (2) Ethernet RJ45, (1) USB Type C
Buttons Reset
Antennas (2) 2.4G internal single band antennas, dual polarity
(2) 5G internal single band antennas, dual polarity
Wi-Fi Standards 802.11a/b/g/n/ac/ac-wave2
Power Method PoE 802.3at
Power Supply PoE Injector 48VDC -0.5A Gigabit
Maximum Power Consumption 17W
Max TX Power 25 dBm
BSSID 4 Per Radio
Power Save Supported
Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
Certifications CE, FCC, IC
Mounting Wall/Ceiling (Kits Included)
Operating Temperature -10 to 70° C (14 to 158° F)
Operating Humidity 5 to 95% Noncondensing
Advanced Traffic Management
VLAN 802.1Q
Advanced QoS Per-User Rate Limiting
Guest Traffic Isolation Supported
WMM Supported
Concurrent Clients 500+
Supported Data Rates (Mbps)
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 450 Mbps (MCS0 – MCS23, HT 20/40)
802.11ac 6.5 Mbps to 1.7Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80)
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
