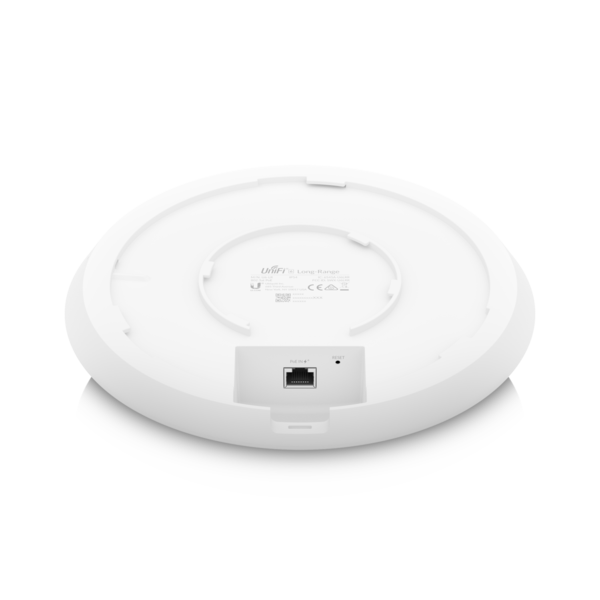

Ubiquiti Access Point WiFi 6 Long-Range

$179.00

Enterprise-grade WiFi 6 access point with 4X4 MIMO and OFDMA functionality.

The Access Point WiFi 6 Long-range (U6 LR) is a high-performance access point that brings powerful, four-stream WiFi 6 coverage to enterprise networks. The U6 LR can reach an aggregate throughput rate up to 3 Gbps with its 5 GHz (4×4 MU-MIMO and OFDMA) and 2.4 GHz (4×4 MIMO) bands. It also has a sideways, down-tilted antenna pattern to expand its coverage area. The water and dust-resistant U6 LR can be mounted either indoors or outside, blending seamlessly into virtually any environment so you’ll never have to disrupt your space’s aesthetic to enjoy excellent wireless coverage. The U6 LR simplifies the process of bringing WiFi 6 to enterprise networks that support a large number of clients. It can be set up in minutes and fully managed with the UniFi Network web application or mobile app.

Features:

      • High-efficiency 4×4 WiFi 6 (802.11ax)
      • 5 GHz band (4×4 MU-MIMO and OFDMA) with 2.4 Gbps throughput rate
      • 2.4 GHz band (4×4 MIMO) with 600 Mbps throughput rate
      • Powered by 802.3at PoE (PoE injector sold separately)
      • IP54-rated water and dust protection for indoor/outdoor mounting versatility
   Managed with UniFi Network application: Version 6.0.34 and later

Out of stock

SKU: U6-LR-US Category:

Description

Mechanical
Dimensions Ø220 x 48 mm (Ø8.66 x 1.89″)
Weight Without Mount: 800 g (1.76 lb)
With Mount: 930 g (2.05 lb)
Enclosure Material Plastic
Mount Material SGCC Steel
Weatherproofing IP54
Hardware
Processor Specs Dual-Core® Cortex® A53 at 1.35 GHz
Memory Information 512 MB
Management Interface Ethernet

Bluetooth Low Energy 5.0
Networking Interface (1) 1 Gbps Ethernet RJ45
Button Factory Reset
LED RGB
Power Method PoE+, Passive PoE (48V)
Power Supply UniFi PoE Switch
48V, 0.5A PoE Adapter (Not Included)
Supported Voltage Range 44 to 57VDC
Max. Power Consumption 16.5W
Max. TX Power
2.4 GHz 26 dBm
5 GHz 26 dBm
MIMO
2.4 GHz 4 x 4
5 GHz 4 x 4
Throughput Speeds
2.4 GHz 600 Mbps
5 GHz 2400 Mbps
Antenna Gain
2.4 GHz 4 dBi
5 GHz 5.5 dBi
Mounting Wall/Ceiling (Kits Included)
Operating Temperature -30 to 60° C (-22 to 140° F)
Operating Humidity 5 – 95% Noncondensing
Certifications CE, FCC, IC
Software
Wi-Fi Standards 802.11a/b/g
Wi-Fi 4/Wi-Fi 5/Wi-Fi 6
Wireless Security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3*)

*Supported With Upcoming Controller Versions
BSSID 8 per Radio
VLAN 802.1Q
Advanced QoS Per-User Rate Limiting
Guest Traffic Isolation Supported
Concurrent Clients 300+
Supported Data Rates (Mbps)
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (Wi-Fi 4) 6.5 Mbps to 600 Mbps (MCS0 – MCS31, HT 20/40)
802.11ac (Wi-Fi 5) 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (Wi-Fi 6) 7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160)

Additional information

Weight 2.05 lbs
