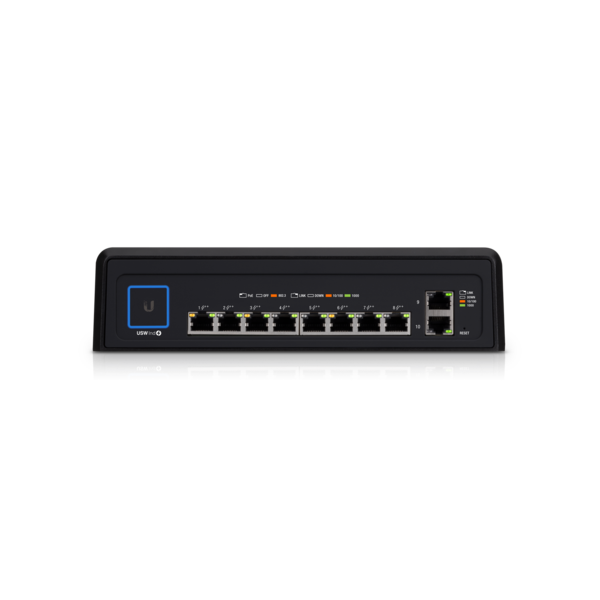

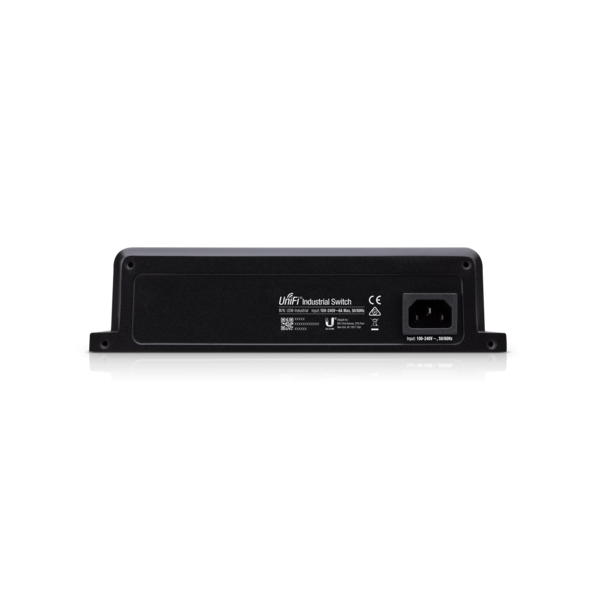

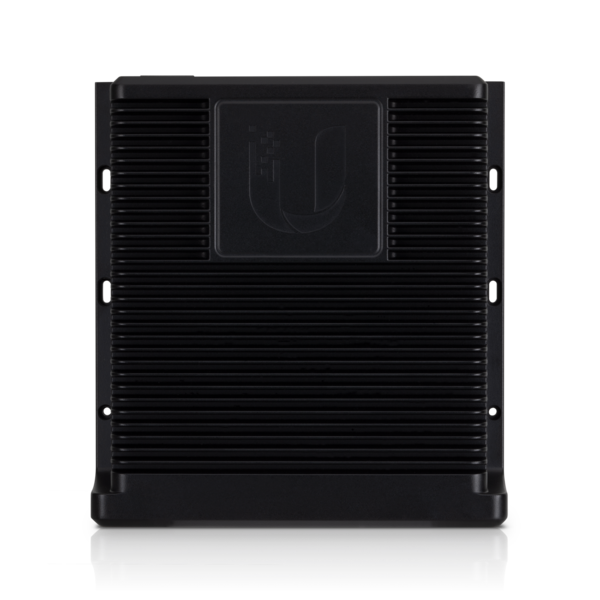

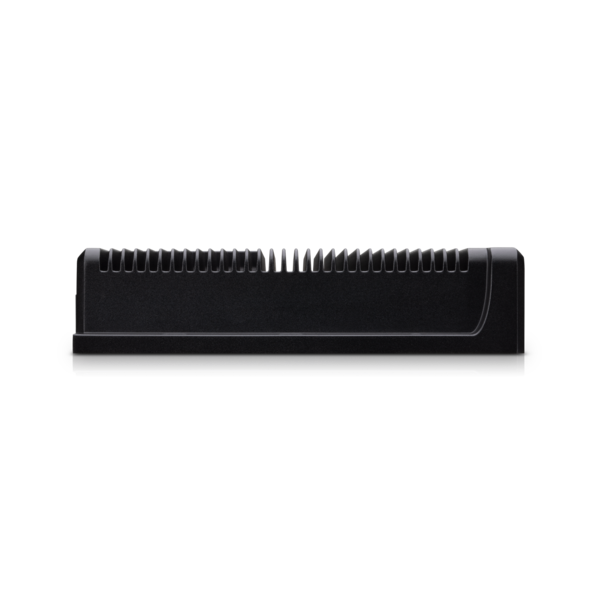

Ubiquiti Switch Industrial
$499.00
Layer 2 switch with (10) GbE RJ45 ports, including (8) 802.3bt PoE++ ports.
The Switch Industrial (USW Industrial) is a fully managed, fanless, Layer 2 switch with (10) GbE RJ45 ports, including (8) 802.3bt PoE++ ports, and a 430W total PoE supply, making it an ideal choice for powering UniFi LED panels, Protect cameras, and access points. The USW Industrial can be mounted either horizontally or vertically in plenum spaces*, and its die-cast aluminum enclosure has a black, powder-coated finish that enhances its resistance to corrosion and extreme temperatures. This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
Features:
-
-
- (8) 802.3bt PoE++ ports
- (2) GbE RJ45 ports
- 430W total PoE supply
- Fanless, near-silent cooling
- Wide operating temperature range
-
*Plenum-rated cabling is required for use in plenum spaces.
Managed with the UniFi Network application: Version 5.14.12 and later
Available on backorder
Description
| USW-Industrial | |
|---|---|
| Dimensions | 254 x 235 x 60 mm (10 x 9.25 x 2.36″) |
| Weight | 3.85 kg (8.49 lb) |
| Enclosure Characteristics | Die-Cast Aluminum (ADC12) with Black Powder Coated Finish |
| Interfaces |
Networking: (8) 10/100/1000 802.3bt PoE RJ45 Ports, (2) 10/100/1000 RJ45 Ports
Management: Ethernet In-Band
|
| Total Non-Blocking Throughput | 10 Gbps |
| Switching Capacity | 20 Gbps |
| Forwarding Rate | 14.88 Mpps |
| Power Method | 100 – 240 VAC, 50/60 Hz Universal Input |
| Power Supply | AC/DC, Internal, 450W DC |
| Supported Voltage Range | AC Input: 100 to 240VAC, Max. 6A |
| Max. Power Consumption (Excluding PoE Output) | 20W |
| LEDs | System: Status RJ45 Ports: PoE, Speed/Link/Activity |
| ESD/EMP Protection | Air: ± 24 kV, Contact: ± 24 kV |
| Shock and Vibration | ETSI300-019-1.4 Standard |
| Operating Temperature | Internal AC/DC @ 450W: -40 to 50° C (-40 to 122° F) Internal AC/DC @ 240W: -40 to 60° C (-40 to 140° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | FCC, IC |
| PoE | |
| PoE Interfaces | PoE++ IEEE 802.3bt (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 8- ) |
| Max. PoE Wattage per Port by PSE | 802.3bt 60W |
| Voltage Range 802.3 PoE Mode | 50-57V |
| Max. Total PoE Power Budget | 430W |
Additional information
| Weight | 8.49 lbs |
|---|
